Sentry™

Description

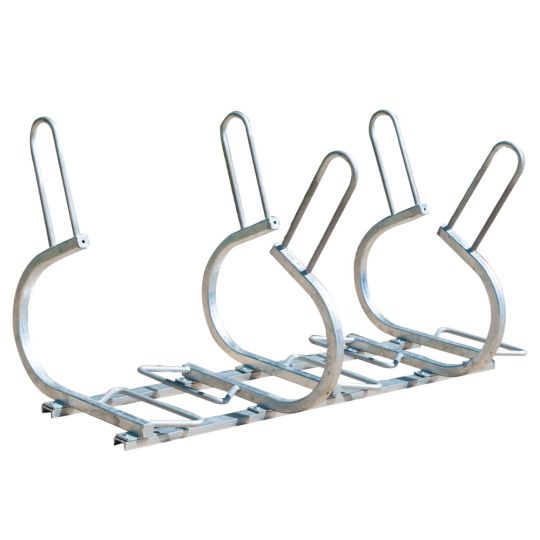

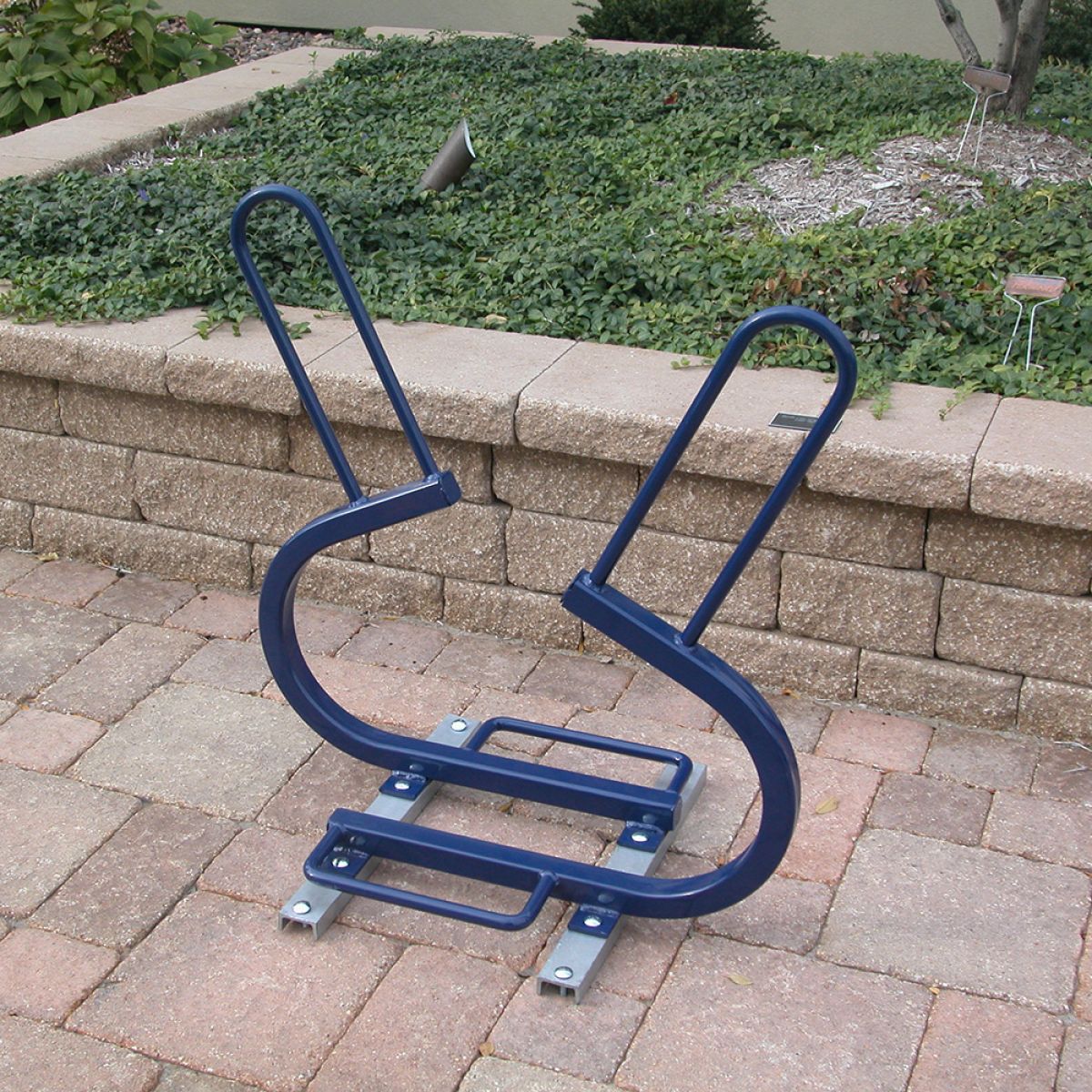

The Sentry™ bicycle rack is a compact, practical, and contemporary bike parking option and sets a new standard in bicycle parking. It features front wheel stops and 3/4" solid rods for “U” locks. This rail-mounted bike rack comes with 2" 'C' channel rails that are always galvanized. These rails allow the unit to remain freestanding or secured to concrete. It also has the ability to park on one or both sides to fit the needs or limits of your space. Diagonal mounting is also an option - please call us with your requirements.

Finishes

Available in a galvanized or powder coat color

*Note: Rails are Galvanized regardless of finish selection

Measurements

SEN-1 | 24-1/2" W x 32" H | 1-bike

SEN-SNG-2 | 24-1/2" W x 33" H x 35" L | 2-bikes

SEN-SNG-3 | 24-1/2" W x 33" H x 65" L | 3-bikes

SEN-SNG-4 | 24-1/2" W x 33" H x 95" L | 4-bikes

SEN-SNG-5 | 24-1/2" W x 33" H x 125" L | 5-bikes

SEN-DBL-2 | 32" W x 33" H x 17" L | 2-bikes

SEN-DBL-3 | 32" W x 33" H x 35" L | 3-bikes

SEN-DBL-5 | 32" W x 33" H x 65" L | 5-bikes

SEN-DBL-7 | 32" W x 33" H x 95" L | 7-bikes

SEN-DBL-9 | 32" W x 33" H x 125" L | 9-bikes

*Height measurement is from grade to top of bike rack. See CAD files below for details

Mounting Options

Surface Mount (1 bike) or Rail Mount (2-9 bike options)
