Overview
Description
No matter how bikes evolve in the next thousand years, the Phoenix™ bike rack will park them safely and securely. The Phoenix™ offers bikes two distinct contact points, at front and rear, for secure locking. Its sturdy structural steel tubing stands up under the most harsh and punishing environments.
Finishes
Available in a galvanized, powder coat, stainless steel, or electropolish stainless steel finish.
Measurements
PHX-2 | 1-7/8" tube | 33-1/2" W x 35" H | 2-bikes
PHX-4 | 1-7/8" tube | 33-1/2" W x 34" L x 36" H | 4-bikes
PHX-6 | 1-7/8" tube | 33-1/2" W x 66" L x 36" H | 6-bikes
PHX-8 | 1-7/8" tube | 33-1/2" W x 96" L x 36" H | 8-bikes
PHX-10 | 1-7/8" tube | 33-1/2" W x 126" L x 36" H | 10-bikes
PHX-SNG-2 | 1-7/8" tube | 24" W x 34" H | 2-bikes
PHX-SNG-4 | 1-7/8" tube | 24" W x 36" L x 36" H | 4-bikes
PHX-SNG-6 | 1-7/8" tube | 24" W x 66" L x 36" H | 6-bikes

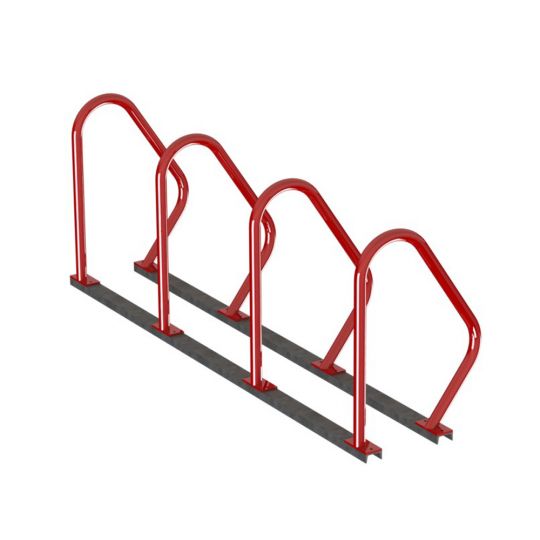

PHX-SNG-8 | 1-7/8" tube | 24" W x 96" L x 36" H | 8-bikes
PHX-SNG-10 | 1-7/8" tube | 24" W x 126" L x 36" H | 10-bikes
*Height measurement is from grade to top of bike rack. See CAD files below for details
Mounting Options
Surface Mounted, In Ground (2-bike only), or Rail Mount (4, 6, 8, 10-bike options)
Specs & Downloads
How to Order
Order Online
Simply browse our products, select your options and then add the items to your cart to complete the checkout process.
Request a Catalog
Contact Us to request a hard copy of our catalog. Additionally, you may view our catalog online.
Call Us
Call our customer service team (800) 448-7931 and we will be more than happy to assist you with your order.
